Security and irreproachable finition are the two strengths of the MACFLY frame
THE STRENGTHS
.png?v=1hl5f6a){kind=small}
Comfort, Performance and innovative
Security and irreproachable finition
Light Weight
Solidity
Volume : the machine is composed of independent parts and easily transportable
Easily disassembled
Stability on the floor
Profiled design to be harmonized with the aerodynamism and the look
DESCRIPTIVE

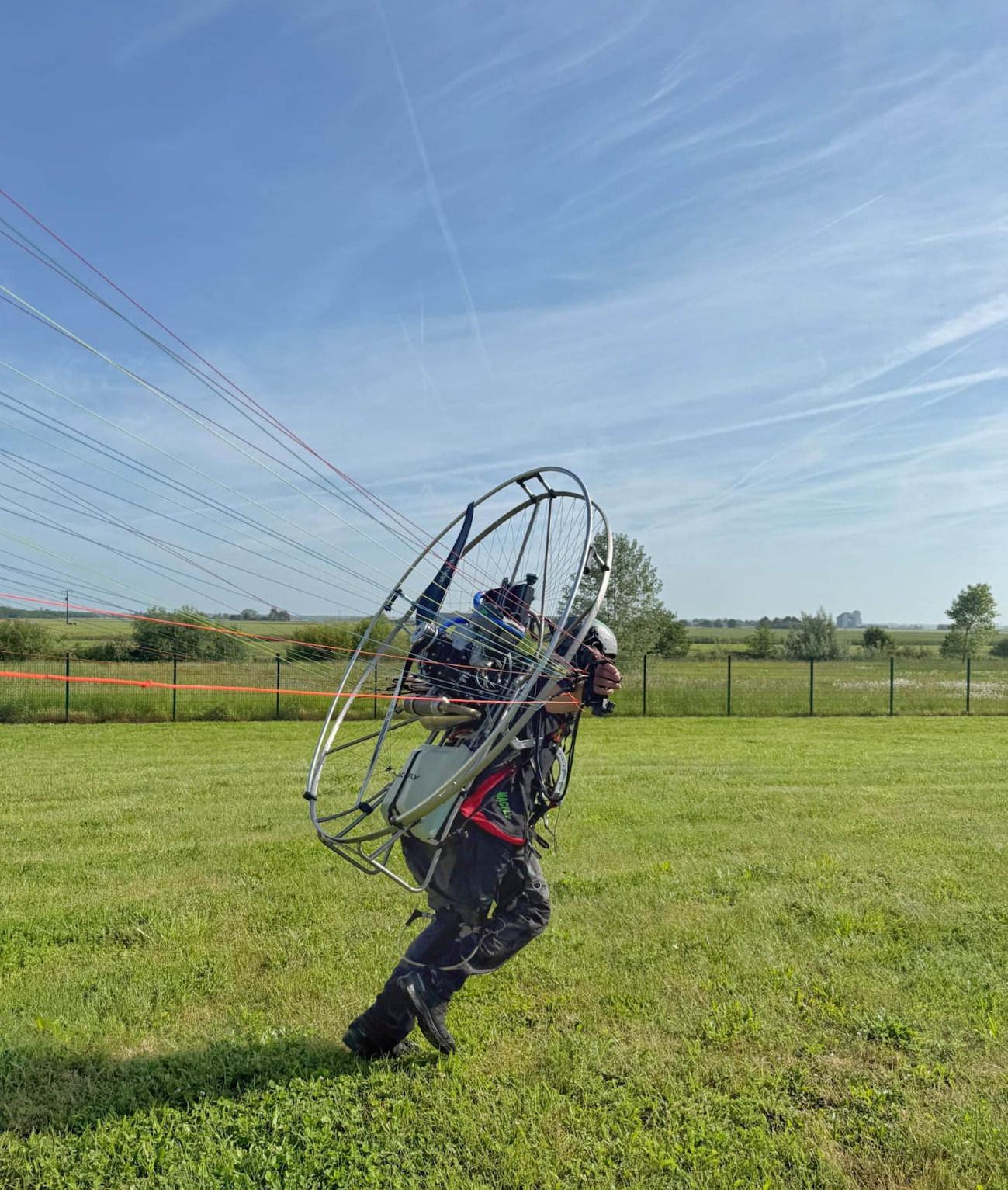

MACFLY struture consists of a cage into 4 parts mounted on a microbilled titanium frame, grade 2, very strong and flexible enabling to bend it back into shape in case of fall.
The cage is contoured to combine aerodynamics and aesthetics
The different models:
Cage 4 parts, foldable - `Ø 138 - 150
Cage 4 parts. travel : Ø 138 - 150
The assembly on the frame
The assembly on the frame is made by fitting held by velcro straps. The rigidity of the assembly when mounted is excellent.
The set is plain, unpainted and without maintenance.
The welds are very strong and exceptionnal finish
The net is made of dyneema and the tension is made using springs. The net always remains tight and its glide ratio generates very little drag.
The frame is equipped with a comfortable harness, designed in partnership with Sup'Air or SOL harness with carbon plate and 2 zipped storage side pockets.
Optional : reserve parachute pocket right / left.
The harness is hanging type "swan-neck" movable arms, mid-high, semi-mobile asymmetric to absord the torque effect. These facilitate take off no twist or torsion effects amplified by powerful engines.
This type of attachment attracted many paraglider pilots for its weight shift piloting.
The carrying is well balanced.
The Macfly can be equipped with a 9L, 12L, 18.4L and 21L tank
The launcher is placed above the head with a return by pulley. Easy and without effort.
Several colors for nets for the cages are available (no additional cost)
New frame/cage color (according to quote)

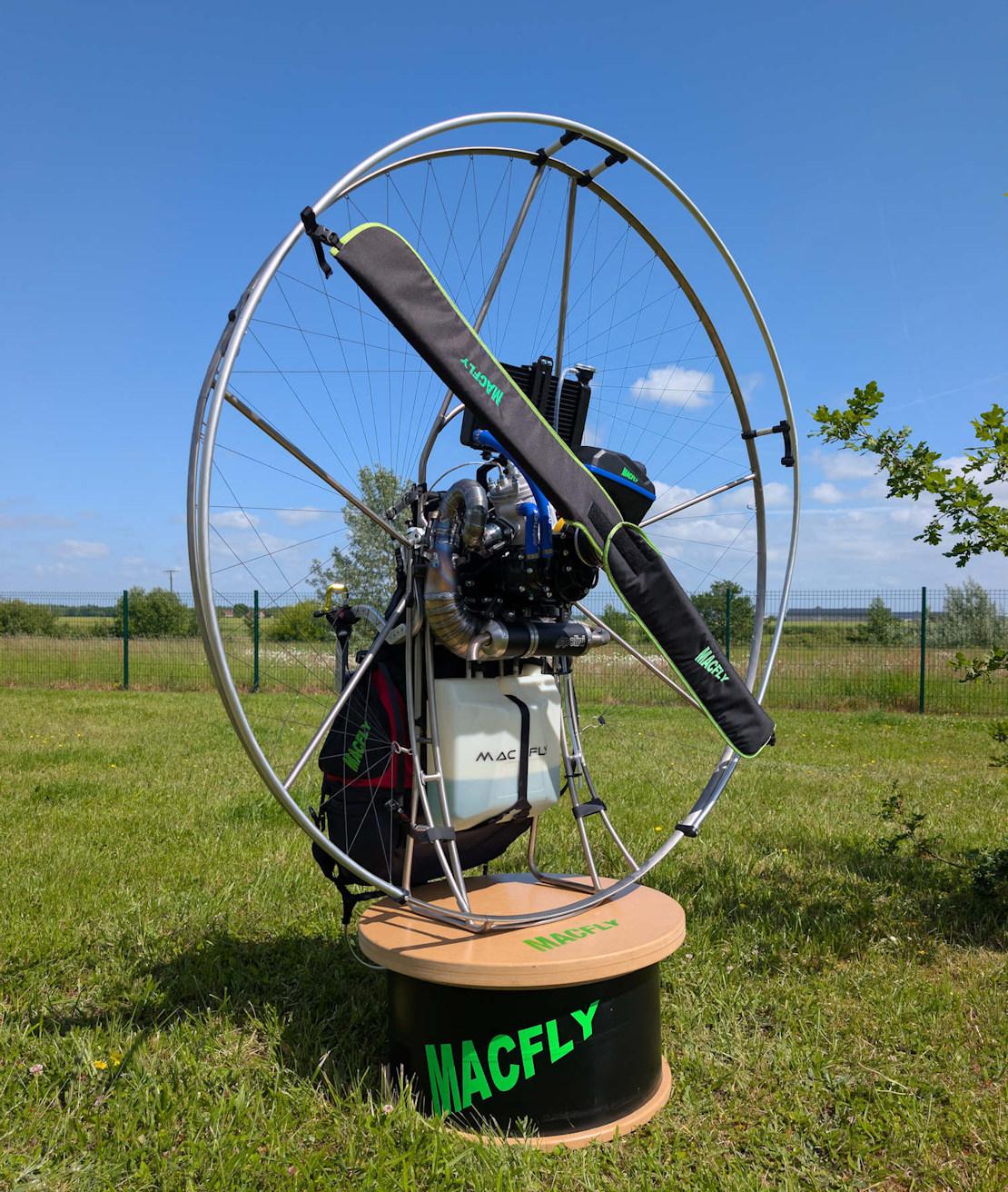

Foldable cage
.png?v=1hl5f68 "Accueil"){kind=small}
.jpg?v=1hl5f6a)
Travel cage
Travel cage disassembled
titanium shrouds
Travel cage disassembled
carbon shrouds (optional)
--> Discover the travel cage :
Video of the assembly : https://youtu.be/Qjp7rn9LIMo
Video of the disassembly : https://youtu.be/7IZM4SZoKt8

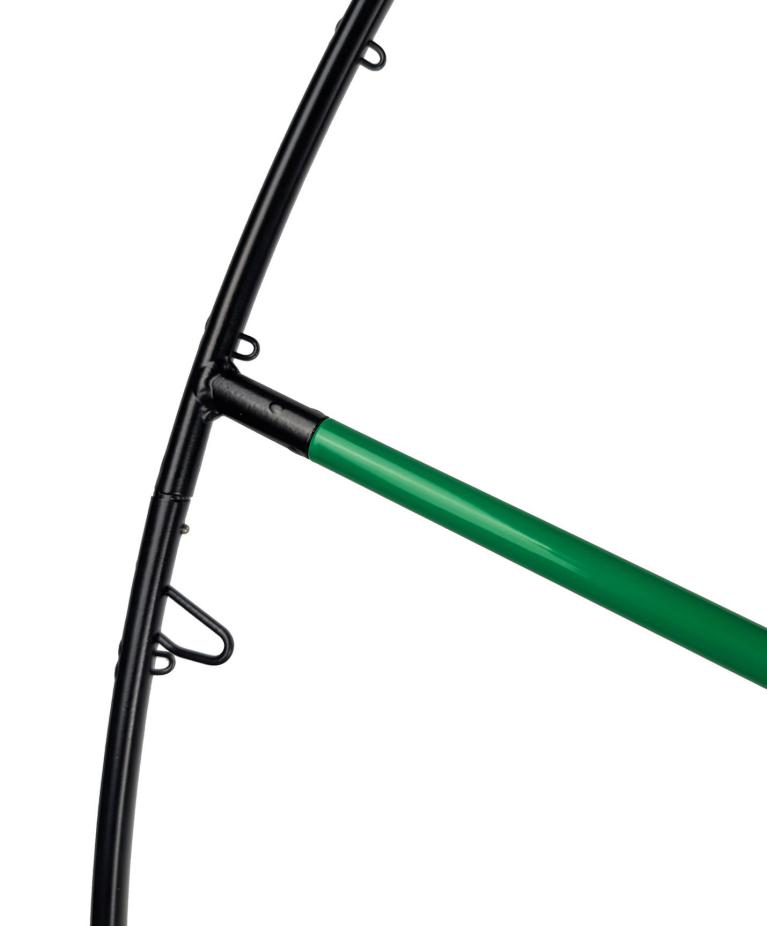

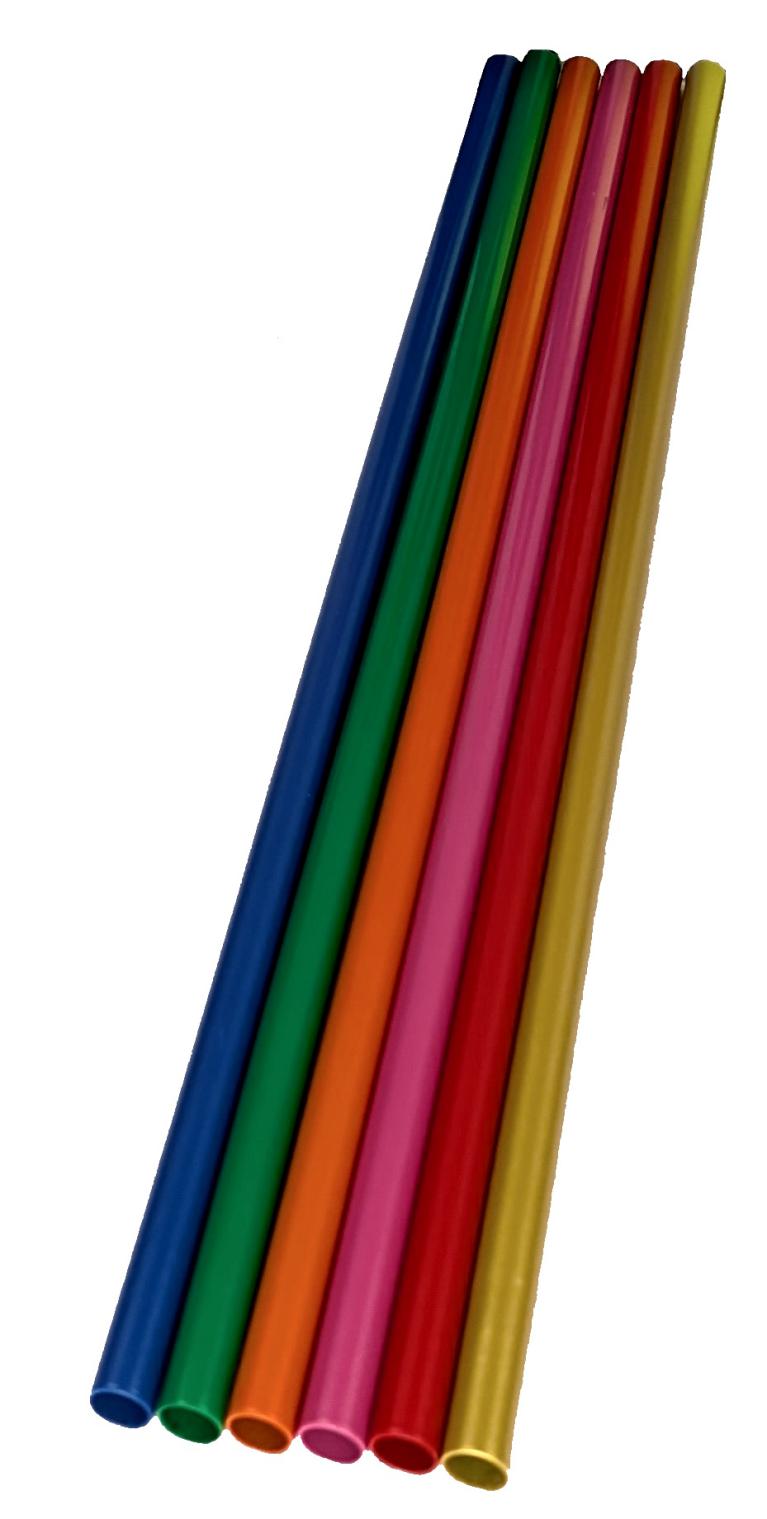

You can now match the color of your cage frame/ spars or the entire frame/cage with your net!
Full: Frame - cage - spars- arms - painted
Painted cage outline
Here are the harness models available:
SUP'AIR harness
Sizes M - L
.jpg?v=1i11844)
SOL harness
Sizes S/M - L/XL
SOL REV harness
Sizes S/M - L/XL
DUDEK POWERSEAT Comfort and Light
Sizes S/M - L/XL
Fuel tanks
Available sizes :
9 L - 12 L - 18,4 L- 21 L
Gaz throttles
3 gaz throttle models are now available,
The Polini, Vittorazi and the Off-Grid !
All are available for manual or electric start.

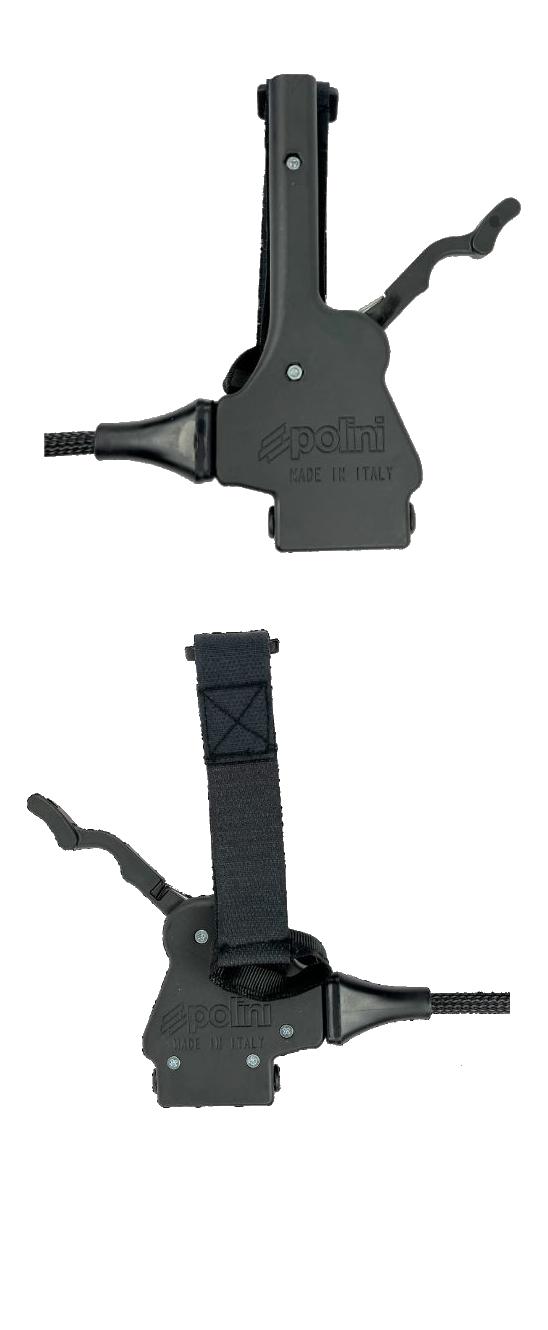

POLINI

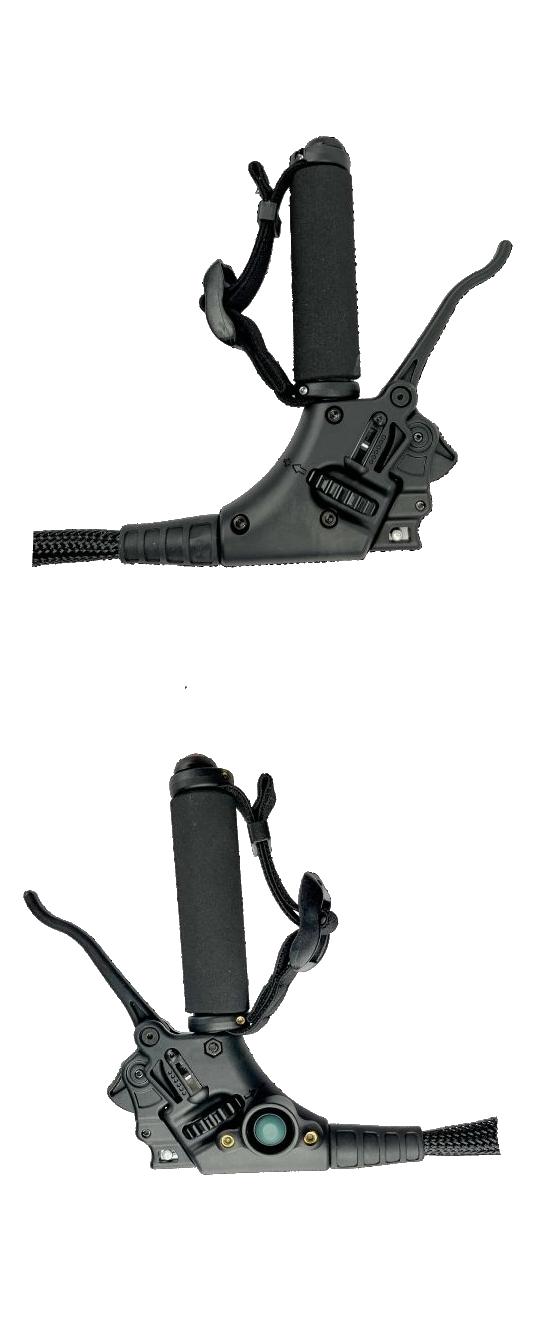

OFF GRID

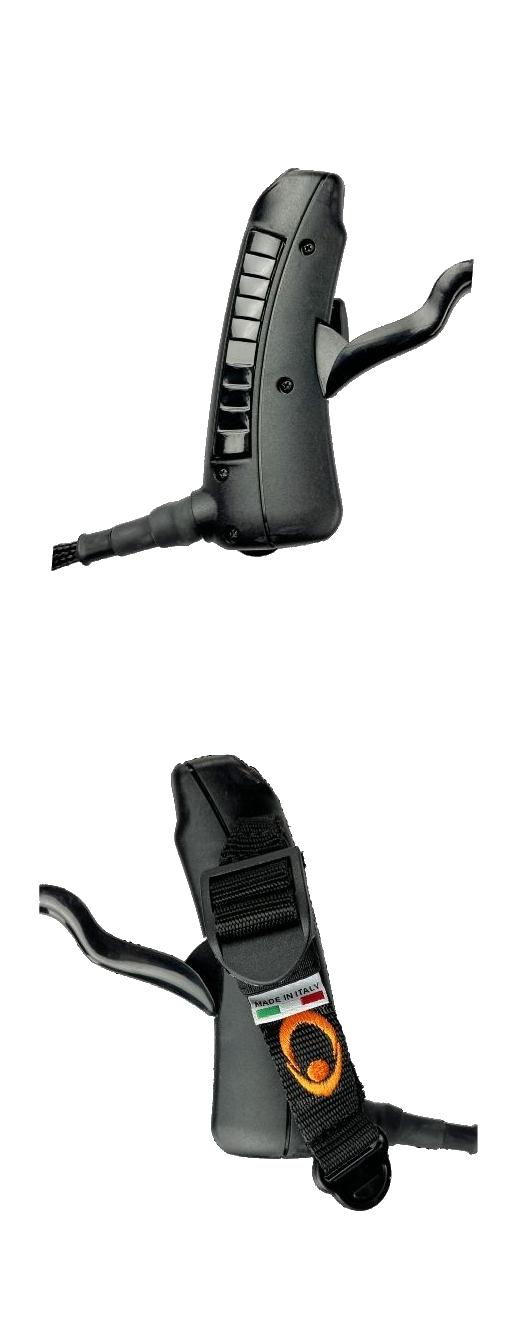

VITTORAZI
